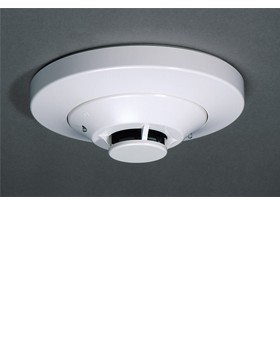

Fire Lite Alarms SD365R photo smoke detect. w/rem test

SD365R

The SD365 addressable, low-profile plug-in photoelectric detectors use a state-of-the art photoelectric sensing chamber with communications to provide open area protection and are used exclusively with Fire Lite"™s Addressable Fire Alarm Control Panels (FACPs). Since these detectors are addressable, they will help emergency personnel quickly locate a fire during its early stages, potentially saving precious rescue time while also reducing property damage. Two LEDs on each sensor light to provide a local, visible sensor indication. Remote LED annunciator capability is available as an optional accessory, PN RA100Z(A). The  SD365R  is a remote test capable detector for use with D355PL(A) or DNR(A)/DNRW duct smoke detector housings.

Features:

SLC LOOP

• Two-wire loop connection.

• Unit uses base for wiring.

ADDRESSING

• Addressable by device.

• Rotary, decimal addressing: 01 "“ 99 with MS-9200UD(LS), and 01 "“ 159 with MS-9600UD(LS).

ARCHITECTURE

• Unique single-source, dual-chamber design to respond quickly and dependably to a broad range of fires.

• Sleek, low-profile design.

• Integral communications and built-in type identification.

• Built-in tamper-resistant feature.

• Removable cover and insect-resistant screen for simple field cleaning.

OPERATION

• Withstands air velocities up to 4,000 feet-per-minute (20 m/ sec.) without triggering a false alarm.

• Factory preset at 1.5% nominal sensitivity for panel alarm threshold level.

• Visible LED "œblinks" when the unit is addressed (communicating with the fire panel) and latches on in alarm.

MECHANICALS:

• Sealed against back pressure.

• Direct surface mounting or electrical box mounting.

• Mounts to: single-gang box, 3.5" (8.89 cm) or 4.0" (10.16 cm) octagonal box, or 4.0" (10.16 cm) square electrical box (using a plaster ring "” included).

OTHER SYSTEM FEATURES:

• Fully coated circuit boards and superior RF/transient protection.

• 94-V0 plastic flammability rating.

• Low standby current.
