Altronix AL100UL 12v power suply/chgr (ul)

AL100UL
Linear Power Supply/Charger

Overview
Model AL100UL power supply/charger converts 16.5VAC/20VA input to a 12VDC @ .75 amp Class 2 Rated
power limited output.    Agency Listings
• UL Listed Power Supplies for use with Burglar Alarm Systems (UL603),
CUL Listed - CSA Standard C603-M1988, Burglar Alarm System.
File# BP5864.

Features/Specifications
• 12VDC power limited output.
• .75A continuous supply current @ 12.5 to 13.9VDC.
• Filtered and electronically regulated outputs.
• 16.5VAC/20VA input from UL Listed, Class 2 transformer.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .5 amp.
• Automatic switch to stand-by battery when AC fails.
• AC input and DC output LED indicators.
• Low battery and AC Fail supervision form "œC" contacts (1 amp @ 28VDC).
• Lifetime Warranty.

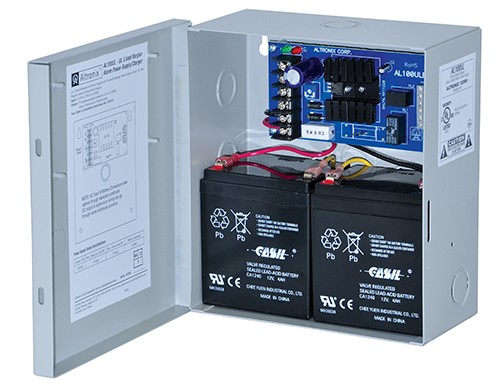

Enclosure
• Accommodates up to two (2) 12VDC/4AH or one (1) 12VDC/7AH batteries.
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.
