AL1012ULXB
Power Supply/Charger

Overview
Model AL1012ULXB power supply/charger converts a 115VAC 60Hz input, to 10 amp of continuous supply current @ 12VDC non-power limited output.    Agency Listings
• UL Recognized Component for Access Control Systems (UL294).
File# BP6714.

Features/Specifications
• 12VDC output.
• 10 amp of continuous supply current.
• 115VAC 60Hz, 1.9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact
rated @ 1 amp 28VDC).
• Lifetime Warranty.

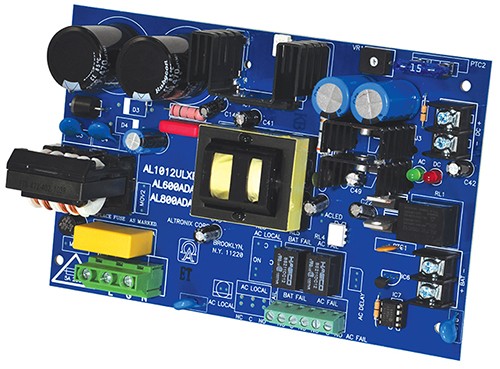

Board
• Dimensions (approximate): 4.5"W x 7.5"L x 2.25"H
