AL1024ULXPD4CB
Power Supply/Charger

Overview

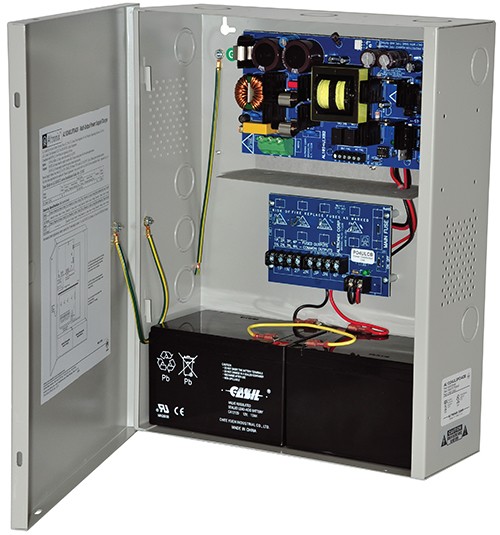

Model AL1024ULXPD4CB power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications distributed via four (4) PTC protected Class 2 Rated outputs. Model AL1024ULXPD4 is a fuse protected version of this unit.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# S4707.
• NFPA 72 Compliant.

Features/Specifications
• 24VDC output.
• 10 amp of continuous supply current for Access Control applications
• 8 amp of continuous supply current, 10 amp during alarm for
Fire Alarm applications.
• Class 2 Rated power limited outputs.
• Four (4) PTC protected outputs.
• PTCs are rated @ 2.5 amp.
• 115VAC 60Hz, 4.4 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/12AH batteries.
• Dimensions: 15.5"H x 12.23"W x 4.5"D.
• 1.125" and 1.375" combination knockouts.
