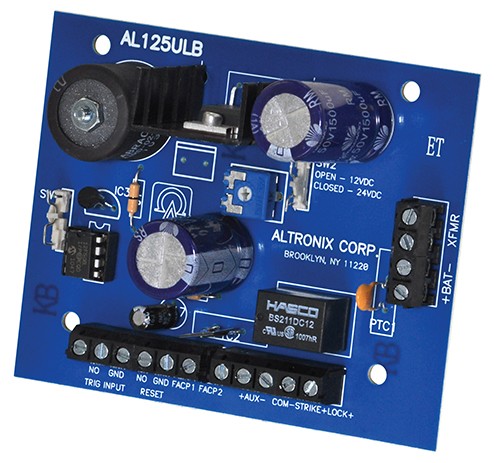

Altronix AL125ULB 12 or 24 volt dc p/s board

AL125ULB
Power Supply/Charger

Overview
Model AL125ULB is a power limited power supply/charger that converts a low voltage AC input into
two (2) PTC protected 12VDC or 24VDC @ 1 amp of total supply current outputs.    Agency Listings
• UL Recognized Component for Access Control Systems (UL294).
• NFPA 101 (Life Safety).

Features/Specifications
• 12VDC or 24VDC selectable output.
• 1 amp of total supply current output.
• Two (2) Class 2 Rated power limited outputs.
• 24VAC/40VA.
• Filtered and electronically regulated outputs.
• Normally Open (NO) trigger input.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .4 amp.
• Automatic switch to stand-by battery when AC fails.
• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
• AC input and DC output LED indicators.
• Lifetime Warranty.

Board
• Dimensions (approximate): 3.5"W x 3.9"L x 1.4"H
