Altronix AL175ULB 12/24vdc 1.6amp.ul board only

AL175ULB
Power Supply/Charger

Overview
Model AL175ULB power supply/charger converts 24VAC input, into two (2) PTC protected 12VDC or 24VDC @ 1.75 amp Class 2 Rated power limited supply current outputs.    Agency Listings
• UL Recognized Component for Access Control Systems (UL294).

Features/Specifications
• 12VDC or 24VDC selectable output.
• 1.75 amp of continuous supply current.
• One (1) triggerable and one (1) constant Class 2 Rated power limited outputs.
• Transformer requirements:
- 24VAC, 40VA for 12VDC or 24VDC output.
• Fire Alarm Panel or Access Control System trigger inputs.
• Filtered and electronically regulated outputs.
• Dry Trigger Input.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .4 amp.
• Automatic switch to stand-by battery when AC fails.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Dry trigger output supervision (form "C" contact rated @ 1 amp 28VDC).
• AC input and DC output LED indicators.
• Lifetime Warranty.

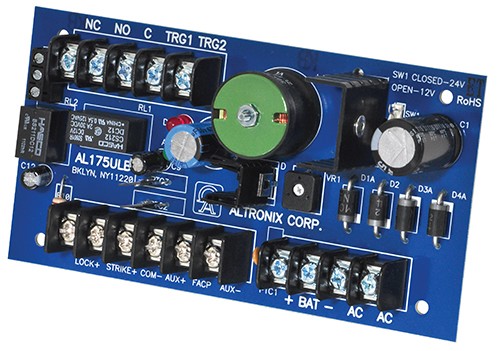

Board
• Dimensions (approximate): 3.1"W x 5.8"L x 1.5"H
