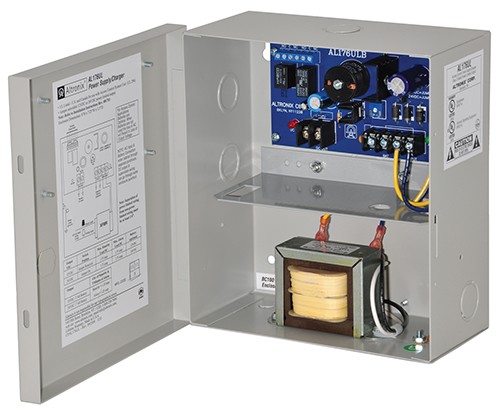

Altronix AL176UL 12/24 dc rl power supply

AL176UL
Power Supply/Charger

Overview
Model AL176UL power supply/charger converts a 115VAC 60Hz input, to a 1.75 amp of continuous supply current @ 12VDC or 24VDC Class 2 Rated power limited output.    Agency Listings
• UL Listed for Access Control Systems (UL294),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# BP6714.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 1.75 amp of continuous supply current output.
• Class 2 Rated power limited output.
• 115VAC 60Hz, .6 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .4 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Enclosure
• Dimensions: 8.5"H x 7.5"W x 3.5"D.
• 1/2" and 3/4" combination knockouts.
