Altronix AL176ULB board only 12/24 dc rl ps

AL176ULB
Power Supply/Charger

Overview
Model AL176UL power supply/charger converts a 24VAC/40VA input, to a 1.75 amp of continuous supply current @ 12VDC or 24VDC Class 2 Rated power limited output.    Agency Listings
• UL Recognized Component for Access Control Systems (UL294).
File# BP6714.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 1.75 amp of continuous supply current output.
• Class 2 Rated power limited output.
• 24VAC/40VA input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .4 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

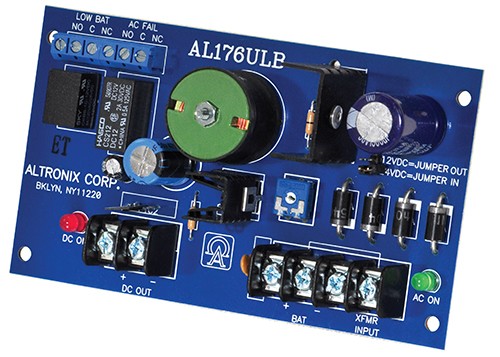

Board
• Dimensions (approximate): 3.1"W x 5.3"L x 1.4"H
