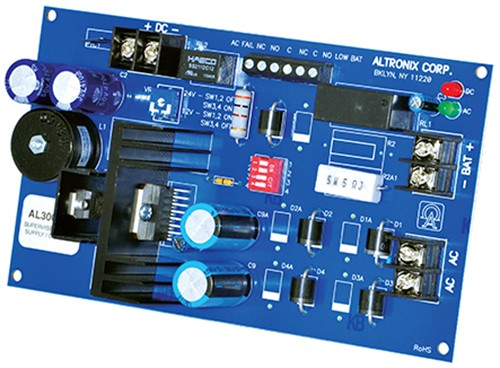

Altronix AL300ULB board only 12vdc/24vdc @2.5amp

AL300ULB
Power Supply/Charger

Overview
Model AL300ULB power supply/charger converts a 28VAC/100VA, input, to a 2.5 amp of continuous supply current @ 12VDC or 24VDC. Class 2 Rated power limited output.    Features/Specifications
• 12VDC or 24VDC selectable output.
• 2.5 amp of continuous supply current output.
• Class 2 Rated power limited output.
• 28VAC/100VA input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .6 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Board
• Dimensions (approximate): 4.1"W x 7.1"L x 1.75"H
