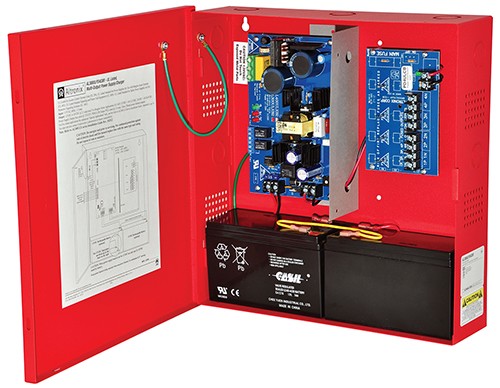

Altronix AL300ULPD4CBR pw spl 2.5a 4 out red cb cr br

AL300ULPD4CBR
Power Supply/Charger

Overview
Model AL300ULPD4CBR power supply/charger converts a 115VAC 60Hz input, to a 2.5 amp of continuous supply current @ 12VDC or 24VDC distributed via four (4) PTC protected Class 2 Rated power limited outputs. Model AL300ULPD4R is a fuse protected version of this unit.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for use with Burglar Alarm Systems (UL603),
Hospital Signaling and Nurse Call Equipment (UL1069),
Power Supplies for Fire Protective Signaling Systems (UL1481),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# S4707.
• NFPA 72 Compliant.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 2.5 amp of continuous supply current output.
• Class 2 Rated power limited outputs.
• Four (4) PTC protected outputs.
• PTCs are rated @ 2.5 amp
• 115VAC 60Hz, 1.45 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Red Enclosure.
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
