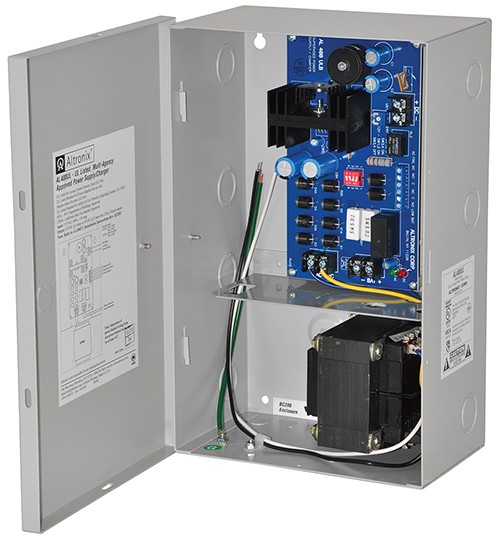

Altronix AL400UL 12/24v 4amppower supply

AL400UL
Power Supply/Charger

Overview
Model AL400UL power supply/charger converts a 115VAC 60Hz input, to 12VDC @ 4 amp or 24VDC @ 3 amp of continuous supply current Class 2 Rated power limited output.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for use with Burglar Alarm Systems (UL603),
Power Supplies for Fire Protective Signaling Systems (UL1481).
File# S4707.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:100.
• MEA - NYC Department of Buildings Approved.
File# 168-92-E.
• FM Approved.
• NFPA 72 Compliant.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 4 amp @ 12VDC or 3 amp @ 24VDC of continuous supply current output.
• Class 2 Rated power limited output.
• 115VAC 60Hz, 1.45 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Enclosure
• Dimensions: 12.25"H x 7.25"W x 4.5"D.
• 1/2" and 3/4" combination knockouts.
