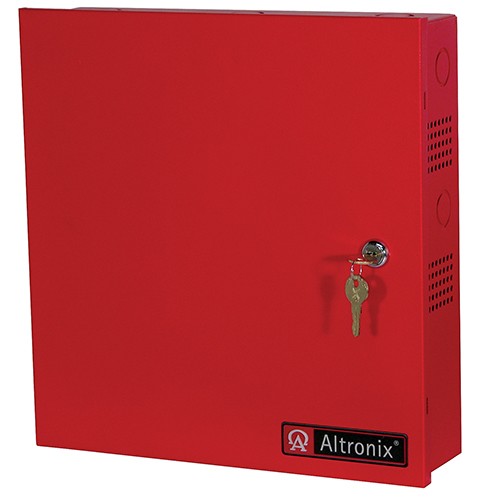

Altronix AL400ULMR al400ulm w/mom5 instld/red cab

AL400ULMR
Multi-Output Power Supply w/Fire Alarm Disconnect

Overview
Model AL400ULMR is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected Class 2 Rated power limited outputs rated @ 2 amp each, with an
output current of 12VDC @ 4 amp or 24VDC @ 3 amp total. Model AL400ULM is a Grey Cabinet version of this product.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for use with Burglar Alarm Systems (UL603),
Hospital Signaling and Nurse Call Equipment (UL1069),
Power Supplies for Fire Protective Signaling Systems (UL1481),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
File# S4707.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:100.
• MEA - NYC Department of Buildings Approved.
File# 168-92-E Vol. IV.

Features/Specifications
Power Supply/Charger:
• 12VDC or 24VDC selectable output.
• 4 amp @ 12VDC or 3 amp @ 24VDC of continuous supply current output.
• 115VAC 60Hz, 1.45 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Multi-Output Module:
• Five (5) PTC protected outputs.
• Class 2 Rated power limited outputs.
• .5 amp @ 12VDC or 24VDC per output.
• Provides power for Fail Safe and/or Fail Secure locking devices.
• Fire Alarm Panel or Access Control System trigger inputs. NO or NC supervised trigger input and
polarity reversal trigger input (.4 amp draw from FACP).
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
