Altronix AL600UL3 ul lstd tri otpt 512 24vdc pwr

AL600UL3
Multi-Output Power Supply/Charger

Overview
Model AL600UL3 power supply/charger converts a 115VAC 60Hz input into three (3) individually regulated outputs: 5VDC and 12VDC are Class 2 Rated power limited outputs, 24VDC output is non-power limited. Factory installed 3-wire line cord.    Agency Listings
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481).
File# S4707.
• CSFM - California State Fire Marshal Approved.
File# 7315-1335:100.
• MEA - NYC Department of Buildings Approved.
File# 168-92-E_Vol. IX.
• NFPA 72 Compliant.

Features/Specifications
• 5VDC, 12VDC or 24VDC simultaneous output.
• 1.75 amp @ 5VDC and 12VDC, and 3 amp @ 24VDC supply current.
• Class 2 Rated power limited outputs (5 and 12VDC).
• Non-power limited output (24VDC).
• 115VAC 60Hz, 1.9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

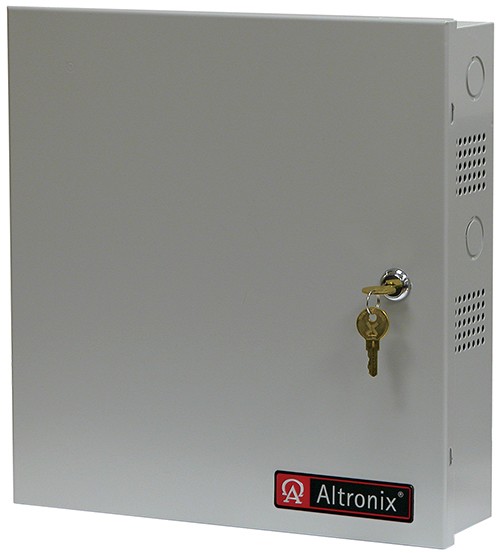

Enclosure
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
