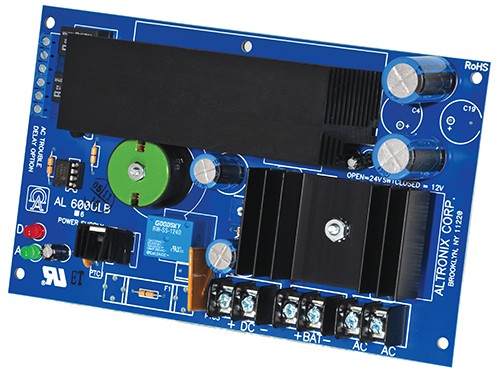

Altronix AL600ULB 12/24 vdc @ 6amp board only

AL600ULB
Power Supply/Charger

Overview
Model AL600ULB power supply/charger converts a 28VAC/200VA input, to a 6 amp of continuous supply current @ 12VDC or 24VDC non-power limited output.    Agency Listings
• UL Recognized Component for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481).
File# S4707.
• NFPA 72 Compliant.

Features/Specifications
• 12VDC or 24VDC selectable output.
• 6 amp of continuous supply current.
• 28VAC/200VA input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision
(form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Board
• Dimensions (approximate): 4.3"W x 7.1"L x 2.3"H
