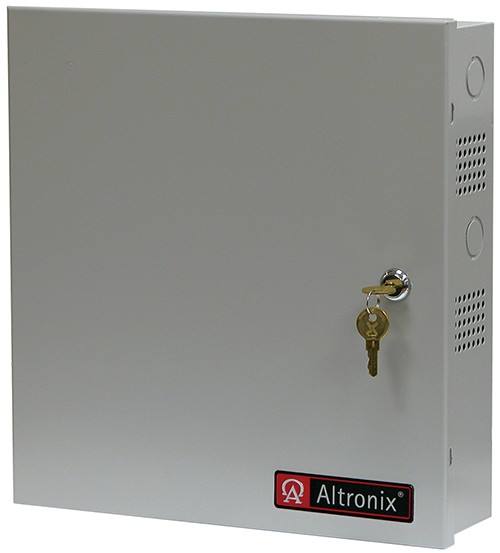

Altronix AL600ULPD4 al600ulpd4 12/24vdc 6 amp p/s

• Input:

• Input 115VAC, 60Hz, 3.5 amp.

• Output:

• 12VDC or 24VDC selectable output.
• 6 amp continuous supply current.
• Four (4) fuse protected outputs.
• Output fuses are rated @ 3.5 amp/250VAC.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.7 amp.

• Supervision:

• AC fail supervision (form "C" contacts).
• - Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

• Visual Indicators:

• AC input and DC output LED indicators.

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• 36.85 or 73.70 BTU/Hr.
• System AC input VA requirement: 402.5VA.
• Lifetime Warranty
