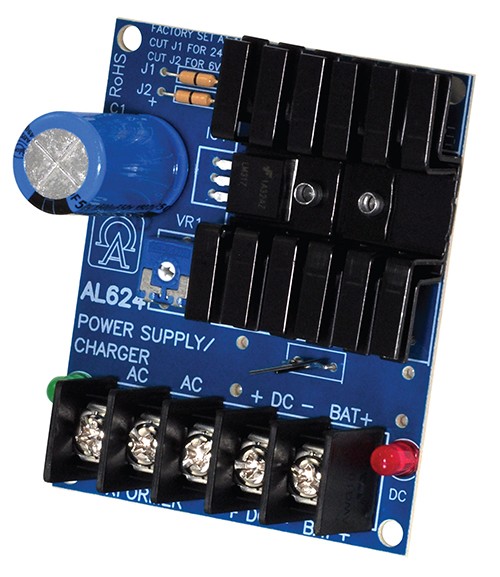

Altronix AL624 6/12vdc 1.2amp 24vdc 750ma bd

AL624
Linear Power Supply/Charger

Overview
Model AL624 power supply/charger converts a low voltage AC input to a 1.2 amp of continuous supply current @ 6VDC or 12VDC or .75 amp of continuous supply current @ 24VDC. Model DPS1 is a DIN Rail Mount version of this product.    Features/Specifications
• 6VDC, 12VDC or 24VDC selectable output.
• 1.2 amp of continuous supply current @ 6VDC or 12VDC or
.75 amp of continuous supply current @ 24VDC.
• Transformer requirements:
- 12.5VAC/20VA for 6VDC output (Altronix Model # TP1220).
- 16.5VAC/20VA for 12VDC output (Altronix Model # TP1620).
- 24VAC/40VA for 24VDC output (Altronix Model # TP2440).
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .3 amp.
• AC input and DC output LED indicators.
• Lifetime Warranty.

Board
• Dimensions (approximate): 2.5"W x 3"L x 1.5"
