ALSD1
Siren Driver

Overview
Model ALSD1 is a high output very low current draw dual channel siren driver designed to work with
alarm panels with limited current capability.    Features/Specifications
• 6VDC or 12VDC operation.
• Parallel or series speaker wiring:
- 113 db @ 10"™ @ 6 Volts - 8 Ohms
- 115 db @ 10"™ @ 6 Volts - 4 Ohms
- 116 db @ 10"™ @ 12 Volts - 8 Ohms
- 120 db @ 10"™ @ 12 Volts - 4 Ohms
• Current draw range from .5 amp to 1.8 amp based on speaker
resistance and supply voltage.
• Two (2) channel operation - steady or yelp.
• Very low current draw.
• Lifetime Warranty.

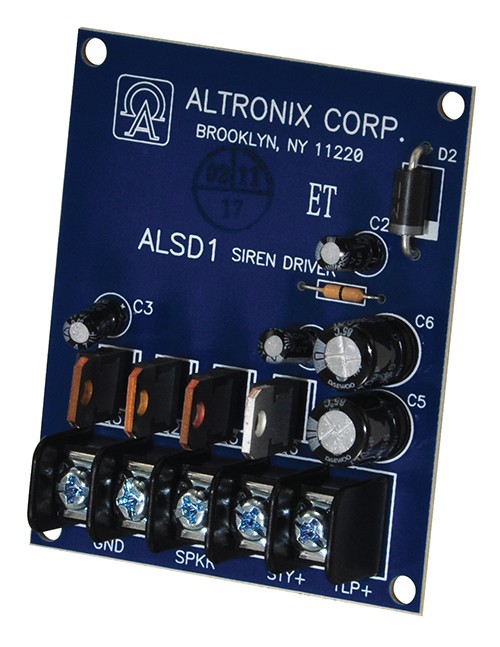

Board
• Dimensions (approximate): 2.75"W x 1.1"L x 1.75"
