Altronix ALSD2 2-ch srn driver 6/12vdc

ALSD2
Siren Driver

Overview

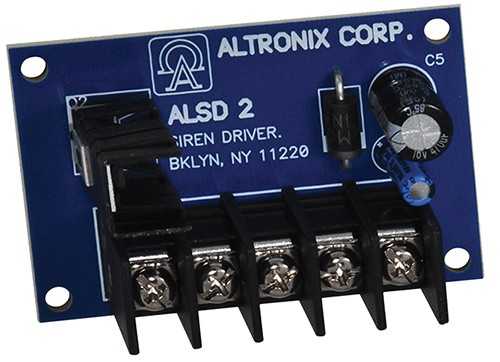

Model ALSD2 is a high output very low current draw dual channel siren driver designed to work with
alarm panels with limited current capability.    Features/Specifications
• 6VDC or 12VDC operation.
• Parallel or series speaker wiring:
- 103 db @ 10 ft. @ 6V - 8 Ohms
- 105 db @ 10 ft. @ 6V - 4 Ohms
- 106 db @ 10 ft. @ 12V - 8 Ohms
- 111 db @ 10 ft. @ 12V - 4 Ohms
• Current draw range from .3 amp to 1.22 amp based
on speaker resistance and supply voltage.
• Two (2) channel operation - steady or yelp.
• Very low current draw.
• Lifetime Warranty.

Board
• Dimensions (approximate): 2.75"W x 1.1"L x 1.75"H
