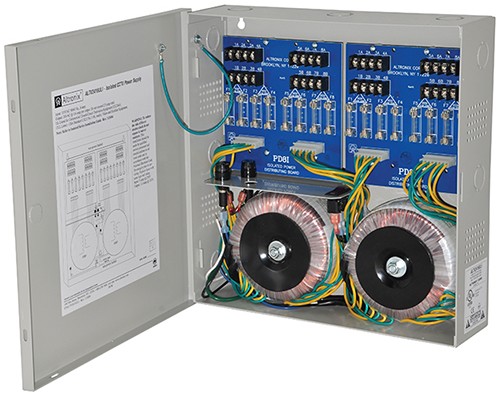

ALTV2416ULI (Replaces Model ALTV2416I)
UL Listed CCTV AC Isolated Wall Mount 16 Output

Overview
Model ALTV2416ULI provides 24VAC distributed via sixteen (16) electronically isolated fuse protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 115VAC 50/60Hz, 6 amp input.
• 24VAC @ 25 amp total output current.
• Sixteen (16) electronically isolated fuse protected outputs rated @ 1.56 amp.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Spare fuses included.
• Lifetime Warranty.

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 24VAC power for CCTV cameras, heaters, and other video accessories.
