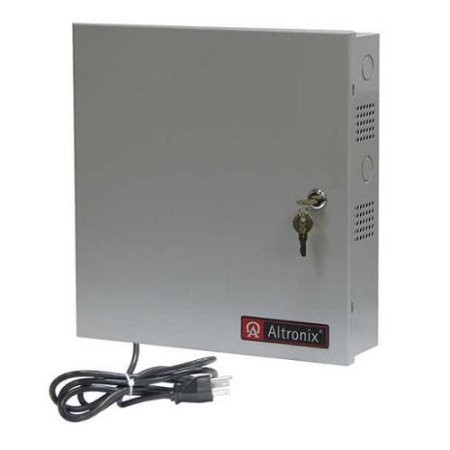

Altronix ALTV2432300UCB3 p/s 24/28vac 32 out 12.5 6'crd

• Input:

• 115VAC, 50/60Hz, 2.7 amp.

• Output:

• Thirty-Two (32) Class 2 Rated PTC protected power limited outputs.
• 24VAC @ 12.5 amp (300VA) supply current (0.391 amp per device, 2.5 amp max.) or 28VAC @ 10 amp (280VA) supply current (0.313 amp per device, 2.5 amp max.).
• Outputs are rated @ 2.5 amp.
• Surge suppression.

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• BTU/Hr.:
• - 24VAC: 153.54BTU/Hr.
• - 28VAC: 143.31BTU/Hr.
• System AC input VA requirement: 310.5VA.

• Features:

• Secondary fuse rated @ 10 amp/250V.
• AC power LED.
• Power ON/OFF switch.
• Factory installed 3-wire line cord.
• Lifetime Warranty
