Altronix ALTV248175ULCB 24v 7.25amp 8 otpts w/cbul

ALTV248175ULCB
UL/CUL Listed CCTV AC Wall Mount 8 Output Power Supply

Overview
Model ALTV248175ULCB provides 24VAC or 28VAC distributed via eight (8) PTC protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 24VAC or 28VAC selectable output.
• 7 amp @ 24VAC or 6.25 amp @ 28VAC (175VA) supply current.
• Eight (8) PTC protected outputs.
• Output PTCs are rated @ 2.5 amp.
• 115VAC 50/60Hz, 1.73 amp input.
• Surge suppression.
• AC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Lifetime Warranty.

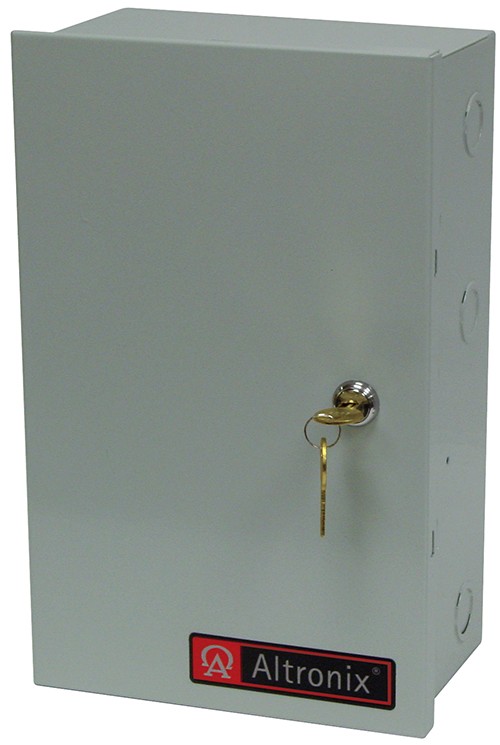

Enclosure
• Dimensions: 12.25"H x 7.25"W x 4.5"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 24VAC or 28VAC power for CCTV cameras, heaters, and other video accessories.
