Altronix ALTV615DC416UCB altv615dc416ucb 6-15vd 4a16ot

ALTV615DC416ULCB
UL/CUL Listed CCTV DC Wall Mount 16 Output Power Supply

Overview
Model ALTV615DC416ULCB provides 6-15VDC distributed via sixteen (16) PTC protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 6-15VDC selectable output.
• 4 amp supply current.
• Sixteen (16) PTC protected Class 2 Rated power limited outputs.
• Output PTCs are rated @ 2.5 amp.
• 115VAC 50/60Hz, .9 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• AC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Lifetime Warranty.

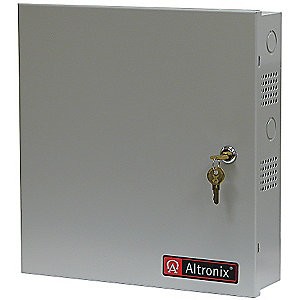

Enclosure
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.

Applications
• 6-15VDC power for CCTV cameras, heaters, and other video accessories
