DPS3
Power Supply/Charger

Overview

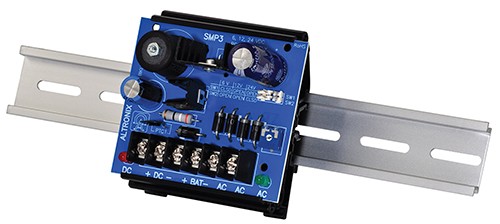

Model DPS3 power supply/charger converts low voltage AC input, to a 2.5 amp of continuous supply current @ 6VDC,
12VDC or 24VDC output. Model SMP3 is a Board Level version of this product.    Features/Specifications
• 6VDC, 12VDC or 24VDC selectable output.
• 2.5 amp of continuous supply current output.
• Transformer requirements:
- 16VAC/40VA for 6VDC output (Altronix Model # TP1640).
- 16VAC/40VA (Altronix Model # TP1640),
24VAC/100VA (Altronix Model # T2428100), or
28VAC/100VA (Altronix Model # T2428100) for 12VDC output.
- 28VAC/100VA for 24VDC output (Altronix Model # T2428100).
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .3 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• Includes Snap Track (order Altronix model# ST3), mounting clips
and battery leads.
• Lifetime Warranty.

Board
• Dimensions (approximate): 3"W x 3.5"L x 2"H
