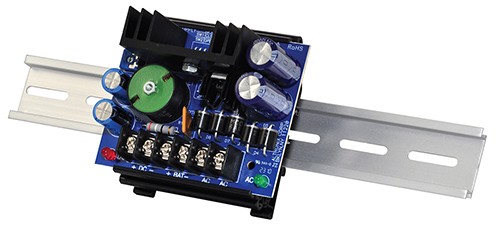

Altronix DPS5 dinrail mt.p/sply 6/12/24v 4a

DPS5
Power Supply/Charger

Overview
Model DPS5 power supply/charger converts low voltage AC input, to a 4 amp of continuous supply current @ 6VDC,
12VDC or 24VDC output. Model SMP5 is a Board Level version of this product.    Features/Specifications
• 6VDC ,12VDC or 24VDC selectable output.
• 4 amp of continuous supply current output.
• Transformer requirements:
- 16VAC/40VA for 6VDC output (Altronix Model # TP1640).
- 28VAC/100VA for 12VDC output (Altronox Model # T2428100).
- 28VAC/175VA for 24VDCoutput (Altronix Model # T2428175).
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .3 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• Includes Snap Track (order Altronix model# ST3), mounting clips
and battery leads.
• Lifetime Warranty.

Board
• Dimensions (approximate): 2.75"W x 3.5"L x 1.75"H
