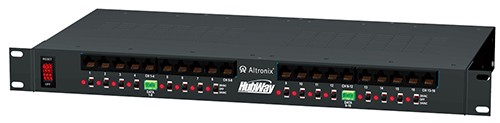

Altronix HUBWAY163CD hubway16cd w/16 dc balun/comb

HubWay163CD
Passive UTP Transceiver Hub with Integral Camera Power
w/16 HubWayDv Video Balun/Combiners

Overview
Altronix HubWay163CD Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with DC fixed or PTZ cameras when utilizing Altronix HubWayDv Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay16CD. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-04, Audio, Video
and Similar Equipment.
File# E148639.

Features/Specifications
• Individual selectable 24VAC or 28VAC power outputs with OFF position.
• Unit provides up to 1 amp max. per channel not to exceed a total
of 10 amp (300VA) maximum current.
• PTC protected outputs.
• PTCs are rated @ 1 amp per channel.
• Class 2 Rated power limited outputs.
• Surge suppression.
• Primary fuse (internal) is rated at 5 amp/250V.
• Input 115VAC 60Hz, 3 amp.
• Data:
- RS422/RS485 data input.
• Video:
- Sixteen (16) channels of video over twisted pair up to 750 ft.
- Sixteen (16) 75 ohm video outputs.
• AC input power indicator.
• Sixteen (16) individual power LED indicators.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC320 - 3-wire grounded line cord (detachable).
• Rack, wall or shelf mount.
• Optional HubSat4D allows transmission of up to four (4) video
signals over a single CAT-5 or higher structured cable.
• Includes sixteen (16) UL Listed Accessory DC (HubWayDv) Video Balun/Combiners.
• Lifetime Warranty.

Rack Chassis
• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions: 1.625"H x 19.125"W x 8.5"D.

Accessories

BNC24J	24" Male to Male Coax Jumper.
HubWayAv	24/28VAC Video Balun/Data/Video Combiner.
HubWayDv	12VDC Video Balun/Data/Video Combiner.
HubWayDvi	12VDC isolated Video Balun/Data/Video Combiner.
