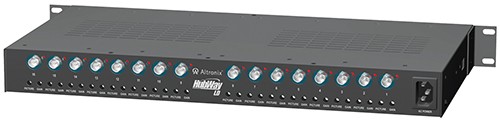

Altronix HUBWAYLD162CD hubwayld 162 cd

Special Price: $1,950.95
SKU: AX-HULD162CD
LimitedAvailability
MPN: HUBWAYLD162CD

  • Input:

  • 115VAC 50/60Hz, 1.5 amp.
  • Primary fuse (internal) is rated at 5 amp/250V.

  • Video:

  • Sixteen (16) channels of video over twisted pair up to a distance of 3000 ft. (914.4m) per channel.
  • Sixteen (16) 75 ohm video outputs.

  • Data:

  • RS422/RS485 data inputs.

  • Power:

  • Individually selectable 24VAC or 28VAC power outputs with OFF position.
  • Unit provides up to 1 amp max. per channel not to exceed a total of 10 amp (300VA) maximum current.
  • Class 2 Rated power-limited outputs.
  • PTC protected outputs are rated @ 1 amp per channel.
  • Surge suppression.

  • Visual Indicators:

  • AC input power indicator.
  • Video signal and power LED indicators.

  • Features:

  • Picture and Gain control.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • IEC 320 - 3-wire grounded line cord (detachable).
  • Unit can be rack, wall or shelf mounted.
  • 1U EIA 19� rack mount chassis.
  • Lifetime Warranty
