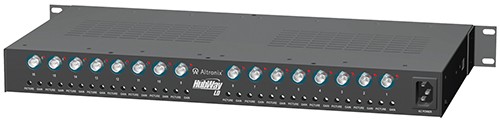

Altronix HUBWAYLD162D hubwayld16d 16 ac balun/comb

• Input:

• 115VAC 50/60Hz, 1.5 amp or 230VAC 50/60Hz, 1 amp.
• Primary fuse (internal) is rated at 5 amp/250V.

• Video:

• Sixteen (16) channels of video over twisted pair up to a distance of 3000 ft. (914.4m) per channel.
• Eight (8) 75 ohm video outputs.

• Data:

• RS422/RS485 data inputs.

• Power:

• Individually selectable 24VAC or 28VAC power outputs with OFF position.
• Unit provides up to 1 amp max. per channel not to exceed a total of 10 amp (300VA) maximum current.
• Class 2 Rated power-limited outputs.
• PTC protected outputs are rated @ 1 amp per channel.
• Surge suppression.

• Visual Indicators:

• AC input power indicator.
• Video signal and power LED indicators.

• Features:

• Picture and Gain control.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Unit can be rack, wall or shelf mounted.
• 1U EIA 19" rack mount chassis.
• Lifetime Warranty
