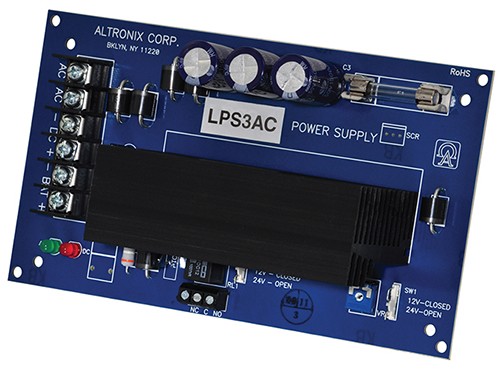

Altronix LPS3AC 24 @ 2.5 amp w/power fail

LPS3AC
Linear Power Supply/Charger

Overview
Model LPS3AC will convert a low voltage AC input to a low voltage 12VDC/24VDC @ 2.5 amp of continuous
supply current output.    Features/Specifications
• 12VDC or 24VDC selectable output.
• 2.5 amp of continuous supply current.
• Transformer requirements:
- 16VAC/56VA for 12VDC output (Altronix Model # TP1656).
- 28VAC/100VA for 24VDC output (Altronix Model # T2428100).
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .5 amp.
• Automatic switch over to stand-by battery.
• Fused battery protection (circuit breaker available).
• Provides AC Fail supervision (Form "œC" contacts).
• AC input and DC output LED indicators.
• Lifetime Warranty.

Board
• Dimensions (approximate): 3.5"W x 6.5"L x 1.75"H
