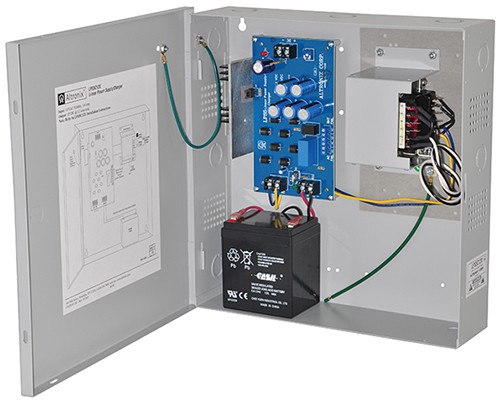

Altronix LPS5C12X 3.5a 12vdc linear pwr sply enc

LPS5C12X
Linear Power Supply/Charger

Overview
Model LPS5C12X will convert a 115VAC 50/60Hz input to a 12VDC @ 3.5 amp of continuous supply current output.    Features/Specifications
• 12VDC output.
• 3.5 amp of continuous supply current.
• 115VAC 50/60Hz, 1 amp input.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .3 amp.
• Automatic switch over to stand-by battery.
• Fused battery protection (circuit breaker available).
• Low battery and AC fail supervision (dry relay outputs 1 amp @ 28VDC).
• AC input and DC output LED indicators.
• Lifetime Warranty.

Enclosure
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5"H x 13"W x 3.25"D.
• 1/2" and 3/4" combination knockouts.
