Altronix NETWAY1 1-port poe mid injector 15.4w

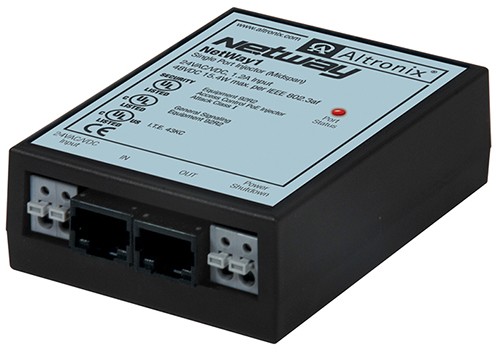

NetWay1
Single Port Injector (Midspan)

Overview
NetWay1 Midspan provide power for PoE compliant cameras. They are available with one port in a compact insulated case. Cameras may be located up to 100m (328 ft.) from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m (328 ft.) for a total range 200m (656 ft.). Additionally, NetWay Midspans are capable of supporting conventional fixed and PTZ IP cameras by utilizing NetWay1512 splitter/adapters.    Agency Listings
• UL Listed for Information Technology Equipment (UL 60950-1),
Access Control Systems (UL294),
CUL Listed for Information Technology Equipment (UL 60950-1),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
• CE Approved.

Features/Specifications
• One (1) port of video over ethernet (CAT5) cable
up to a distance of up to 100m (328 ft.) per port.
• 24VAC/VDC input.
• Unit provides up to 15.4W max. power per channel.
• IEEE 802.3af compliant.
• Short circuit protection.
• PoE shutdown feature (12VAC to 24VAC or 5VDC to 24VDC input).
• Spring terminal block.
• High impact housing with convenient screw mounting provision.
• Lifetime Warranty.

Module Case
• Dimensions (approximate): 2.5"W x 3.8"L x 1"H

Accessories

NetWayXT	Extends range an additional 100m (328 ft.).
NetWay1512	15W adapter for conventional IP cameras.
