Altronix NETWAY16 16 port midspan poe

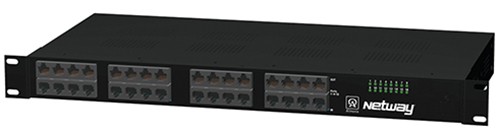

NetWay16
Sixteen (16) Port PoE Midspan

Overview
NetWay16 Midspans provide power for PoE compliant cameras. They are available with eight or sixteen ports in a space saving 1U EIA 19" rack mount chassis which may be rack or shelf mounted. Cameras may be located up to 100m (328 ft.) from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m (328 ft.) for a total range 200m (656 ft.). Additionally, NetWay Midspans are capable of supporting conventional fixed and PTZ IP cameras by utilizing NetWay1512 or NetWay3012 splitter/adapters.    Agency Listings
• UL Listed for Information Technology Equipment (UL 60950-1),
CUL Listed for Information Technology Equipment (UL 60950-1).
File# E329542, Vol X1.

Features/Specifications
• Sixteen (16) ports of video over ethernet (CAT5) cable up to
a distance of up to 100m (328 ft.) per port.
• Four (4) ports are selectable for 30W to accommodate IP PTZ cameras
(requires NetWay3012 adapter for each camera port).
• 115VAC 50/60Hz, 2 amp input.
• Primary fuse (internal) is rated at 5 amp/250V.
• Unit provides up to 15.4W max. power per channel.
• IEEE 802.3af compliant.
• Short circuit protection.
• Illuminated master power disconnect circuit breaker with manual reset.
• Individual port status LEDs.
• IEC 320 - 3-wire grounded line cord (detachable).
• Unit can be rack, shelf or wall mounted.
• 1U rack mount chassis for use in standard EIA 19" rack.
• Lifetime Warranty.

Rack Chassis
• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions: 1.625"H x 19.125"W x 8.5"D.

Accessories

NetWayXT	Extends range an additional 100m (328 ft.).
NetWay3012	30W adapter for conventional IP cameras.
NetWay1512	15W adapter for conventional IP cameras.
