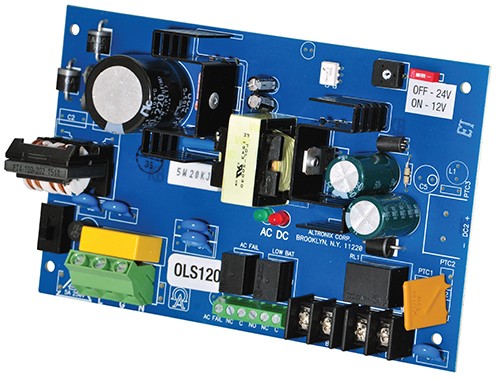

OLS120
Offline Switching Supervised Power Supply/Charger

Overview
OLS120 power supply/charger converts 115VAC, 60Hz or 230VAC, 50Hz input, into a 12VDC or 24VDC @ 4 amp of continuous supply current. This general purpose power supply has a wide range of applications for access control and security system accessories that require additional power.    Features/Specifications
• 12VDC or 24VDC selectable output.
• 4 amp of continuous supply current output.
• Universal input 115VAC, 60Hz, 0.95 amp or 230VAC, 50Hz, 0.6 amp.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .5 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Board
• Dimensions (approximate): 4.51"W x 7.24"L x 1.77"H
