Altronix OLS300 off line swt//chrg 12vdc @16a

OLS300
Offline Switching Supervised Power Supply/Charger

Overview
Model OLS300 power supply/charger converts a 115VAC 50/60Hz input, to 16 amp of continuous supply current @ 12VDC.    Features/Specifications
• 12VDC output.
• 16 amp of continuous supply current output.
• 115VAC 50/60Hz, 4.4 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

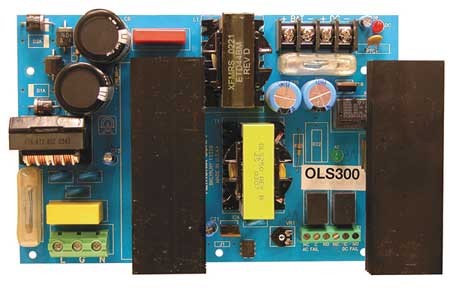

Board
• Dimensions (approximate): 8"W x 5"L x 2.125"H
