Altronix OLS75 12/24vdc 2.5a pwrsply chrgr bd

OLS75
Offline Switching Supervised Power Supply/Charger

Overview
Model OLS75 power supply/charger converts a 115VAC 50/60Hz input, to a 2.5 amp of continuous supply current
@ 12VDC or 24VDC.    Features/Specifications
• 12VDC or 24VDC selectable output.
• 2.5 amp of continuous supply current output.
• 115VAC 50/60Hz, .5 amp input.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .5 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery supervision (form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

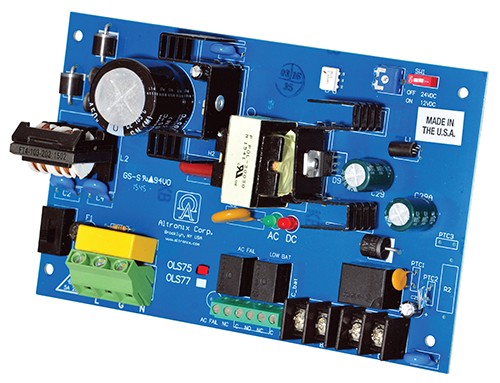

Board
• Dimensions (approximate): 4.125"W x 7.5"L x 2.125"H
