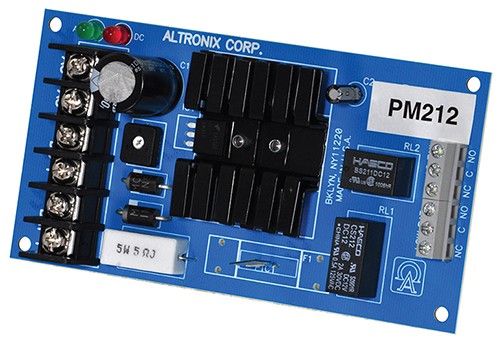

Altronix PM212 12vdc 1.0amp

PM212
Supervised Linear Power Supply/Charger

Overview
Model PM212 power supply/charger converts a low voltage AC input to a 12VDC @ 1 amp continuous supply current output.    Features/Specifications
• 12VDC output.
• 1 amp of continuous supply current.
• Transformer requirements:
- 16VAC/20VA for 12VDC output (Altronix Model # TP1620).
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .2 amp.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision.
(form "C" contact rated @ 1 amp 28VDC).
• Lifetime Warranty.

Board
• Dimensions (approximate): 2.75"W x 5.25"L x 1.5"H
