Altronix → Altronix R1224DC16CB p/s 12/24vdc 8a16out w/cir brk
rganization

Altronix R1224DC16CB p/s 12/24vdc 8a16out w/cir brk

Special Price: $393.59
SKU: AX-R1224D16C
LimitedAvailability
MPN: R1224DC16CB
Email this product to a friend
  • Description
  • Reviews

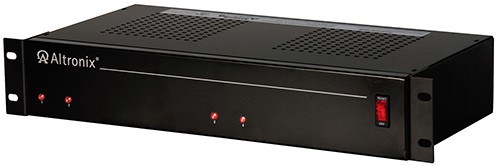

R1224DC16CB
UL Listed Rack Mount Power Supply

Overview
The Altronix R1224DC16CB Rack Mount Power Supply provides 12VDC or 24VDC distributed via sixteen (16) PTC protected Class 2 Rated outputs for power limited installation.
Agency Listings
• UL Listed Specialty Power Supply (UL1012),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.

Features/Specifications
• 12VDC @ 4.5 amp per channel of 4 outputs or
24VDC @ 4.5 amp per channel of 4 outputs.(2 amp max. per channel)
• Sixteen (16) PTC protected outputs.
• Individual power LED indicators per bank.
• Power switch w/built-in circuit breaker.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Removable terminal blocks w/locking screw flange.
• Ease of installation saves time and eliminates costly labor.
• Lifetime Warranty.

Rack Chassis
• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions: 3.25"H x 19.125"W x 8.5"D.
• Allow 1/2U space on top and bottom of the unit for ventilation.
