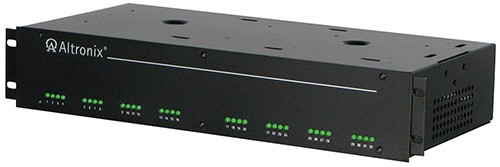

Altronix R2432300UL 24/28v 12.5/10a 32 out rm p/s

R2432300UL
CCTV AC Rack Mount 32 Output Power Supply

Overview
Model R2432300UL provides 24VAC or 28VAC distributed via thirty-two (32) fuse protected outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 24VAC or 28VAC selectable output.
• 12.5 amp @ 24VAC (300VA) or 10 amp 28VAC (280VA) supply current.
• Thirty-two (32) fuse protected outputs.
• Output fuses are rated @ 3.5 amp.
• 115VAC 50/60Hz, 3 amp input.
• Surge suppression.
• AC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Removable terminal blocks w/locking screw flange.
• Lifetime Warranty.

Rack Chassis
• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions: 3.25"H x 19.125"W x 8.5"D.
