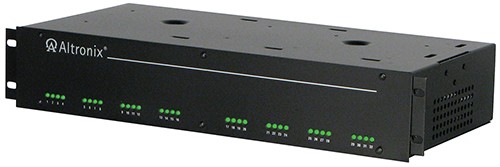

Altronix R2432600CB220 p/s 24vac @25a 28vac @20a 220v

• Input:

• 220VAC, 50/60Hz, 3 amp.

• Output:

• Thirty-two (32) PTC protected outputs.
• 24VAC @ 25 amp (600VA) supply current (0.39 amp per device, 2.5 amp max.)
• or 28VAC @ 20 amp (560VA) supply current (0.3125 amp per device, 2.5 amp max.).
• Outputs are rated @ 2.5 amp.
• Surge suppression.

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• BTU/Hr.:
• - 24VAC: 307.09 BTU/Hr.
• - 28VAC: 286.62 BTU/Hr.
• System AC input VA requirement: 660VA.

• Features:

• Thirty-two (32) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• 3-wire grounded line cord.
• Removable terminal blocks with locking screw flange.
• Lifetime Warranty
