R615DC1016CB

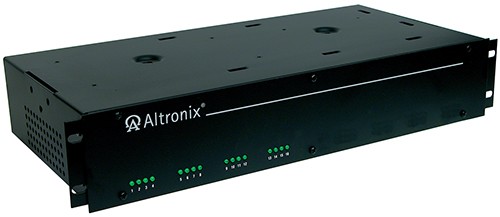

CCTV DC Rack Mount 16 Output Power Supply

Overview
Model R615DC1016CB provides 6-15VDC distributed via sixteen (16) PTC protected outputs.    Features/Specifications
• 6VDC-15VDC selectable output.
• 10 amp of continuous supply current output.
• Sixteen (16) PTC protected outputs.
• Output PTCs are rated @ 2.5 amp.
• 115VAC 50/60Hz, 1.9 amp input.
• Short circuit and thermal overload protection.
• DC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Removable terminal blocks w/locking screw flange.
• Lifetime Warranty.

Rack Chassis
• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions: 3.25"H x 19.125"W x 8.5"D.
