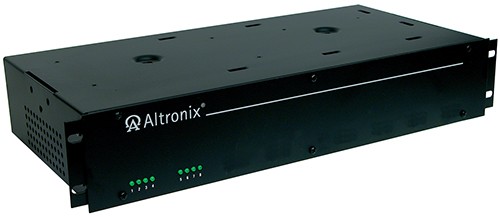

Altronix R615DC8UL 19 rack mt 6-15vdc 4 amp p/s

R615DC8UL
CCTV DC Rack Mount 8 Output Power Supply

Overview
Model R615DC8UL provides 6-15VDC distributed via eight (8) fuse protected Class 2 Rated power limited outputs.    Agency Listings
• UL Listed for Commercial CCTV Equipment (UL2044),
CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video
and Similar Equipment.
File# E148639.
• CE Approved.

Features/Specifications
• 6-15VDC selectable output.
• 4 amp supply current.
• Class 2 Rated power limited outputs.
• Eight (8) fuse protected outputs.
• Output fuses are rated @ 3.5 amp.
• 115VAC 50/60Hz, .9 amp input.
• Short circuit and thermal overload protection.
• DC power LED indicator.
• Illuminated Power Disconnect Circuit Breaker with manual reset.
• Unit maintains camera synchronization.
• Removable terminal blocks w/locking screw flange.
• Lifetime Warranty.

Rack Chassis
• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions: 3.25"H x 19.125"W x 8.5"D.
