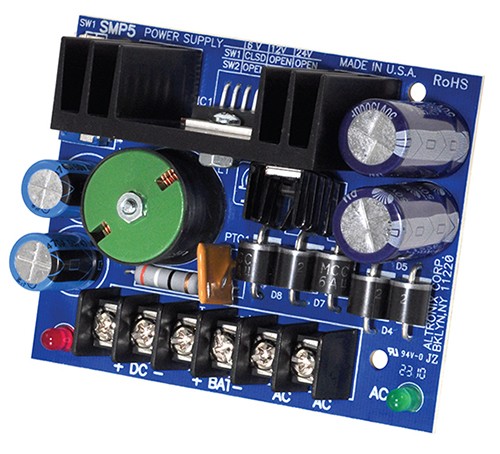

Altronix SMP5BC rplcmnt board f/ax-altv1224dc

• Input

  • 6VDC applications use TP1640.
  • 12VDC applications use T2428100.
  • 24VDC applications use T2428175.

• Output

  • 6VDC, 12VDC or 24VDC selectable output.
  • 4A supply current.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Zero voltage drop when switching over to battery backup.

• Visual Indicators

  • AC input and DC output LED indicators.

• Electrical

  • Temperature:

    • Operating: 0 ° C to 49 ° C (32 ° F to 120 ° F).
    • Storage: - 20 ° C to 70 ° C ( - 4 ° F to 158 ° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 6VDC: 13 BTU/Hr.
    • 12VDC: 25 BTU/Hr.
    • 24VDC: 49 BTU/Hr.

  • System AC input VA requirement:

    • 6VDC: 55.2VA.
    • 12VDC/24VDC: 115VA.

• Features

  • Extremely compact design.
  • Includes battery leads.
  • Snap Trac compatible (order Altronix model number ST3).
