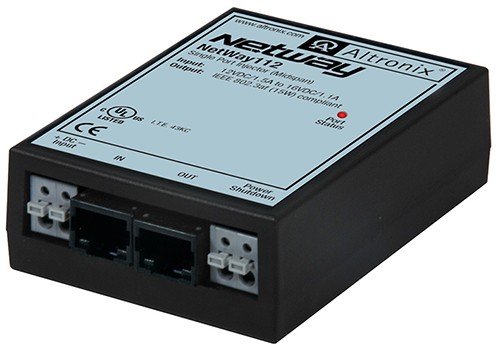

Altronix NETWAY112 1 port midspan poe 12vdc

• Input:

• 12VDC/1.5A to 16VDC/1.1A.

• Data:

• One (1) PoE port provides power and passes data over ethernet (CAT5) cable up to 100m.
• Data rate: 10/100 Base-T compliant.

• Output Power:

• Port provides up to 15.4W max.
• IEEE 802.3af (15W) compliant.
• 48VDC.
• Short circuit protection.

• Features:

• PoE status LED.
• PoE shutdown feature allows for cameras and/or edge devices to be reset.
• Auto detection and protection of legacy non-PoE cameras/devices.

• Environmental:

• Operating Ambient Temperature: UL60950-1:
• -40 ° to 122 ° F (-40 ° C to 50 ° C).
• Relative humidity: 85%, +/-5%
• Storage Temperature: -40 ° to 158 ° F (-40 ° to 70 ° C).
• Operating Altitude: - 1000 to 6.561.7 ft. (- 304.8 to 2,000m).

• Mechanical:

• Lightweight molded enclosure.
• Compact insulated housing.
• Spring terminals (input and PoE shutdown).
• Dimensions (W x L x H approx.):
• 2.5" x 3.8" x 1" (63.5mm x 96.52mm x 25.4mm)
• Product weight (approx.): 0.2 lbs. (0.1 kg).
• Shipping weight (approx.): 0.25 lbs. (0.11 kg).
• Lifetime Warranty
