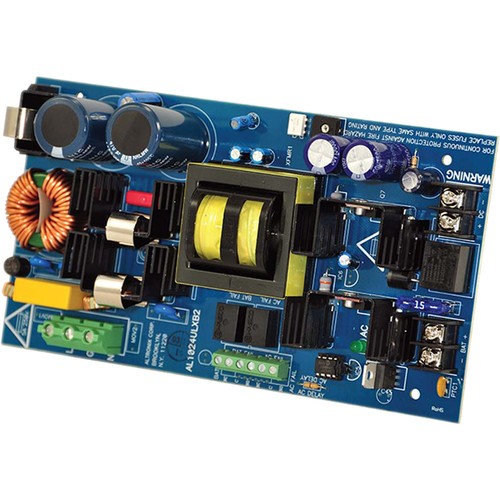

Altronix AL1024ULXB2 10a access 8a fire p/s board

• Input:

• Input 115VAC / 60Hz, 4.2 amp.

• Output:

• 24VDC output.
• 8 amp continuous supply current with 10 amp supply current during alarm.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Maximum Ripple: 250mV P/P

• Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 3.6 amp.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when switched over to battery backup.

• Visual Indicators:

• AC input and DC output LED indicators.

• Supervision:

• AC fail supervision (form "C" contacts).
• - Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence supervision (form "C" contacts).

• Electrical:

• Operating temperature: 0 ° C to 49 ° C ambient.
• 98.27 BTU/Hr.
• System AC input VA requirement: 483VA.
• Lifetime Warranty
