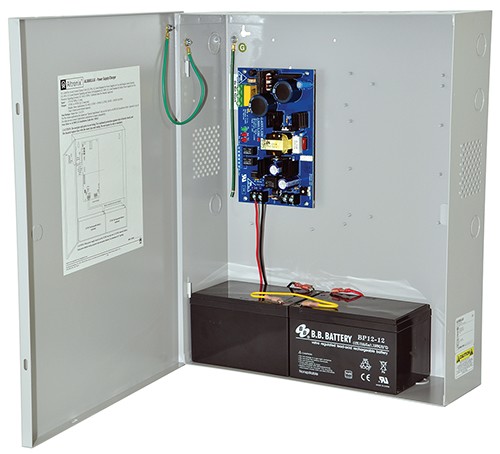

Altronix AL300ULXJG 12/24 vdc 2.5a ul xl encl grey

• Input

  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.

• Output

  • 12VDC or 24VDC selectable output.
  • Burglar Alarm Applications (UL 603):
  • 12VDC = 10VDC-13.2VDC.
  • 24VDC = 20VDC-26.4VDC.
  • 12VDC or 24VDC @ 2.5A supply current.
  • Class 2 Rated power limited output.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).

• Visual Indicators

  • AC input, DC output and Battery LED indicators.

• Temperature

  • Operating 0 ° C to 49 ° C (32 ° F to 120 ° F).
  • Storage - 20 ° C to 70 °C ( - 4 ° F to 158 ° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 12VDC: 15 BTU/Hr.
    • 24VDC: 31 BTU/Hr.
  • System AC input VA requirement: 402.5VA.
