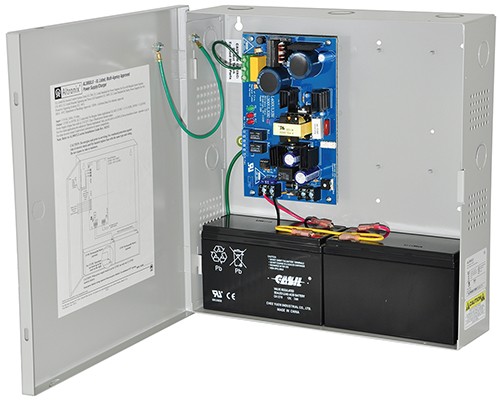

Altronix AL300X220 12/24 vdc 2.5a ul p/s 220vac

Special Price: $147.27
SKU: AX-AL300X220
LimitedAvailability
MPN: AL300X220

  • Input:

  • Nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.7 amp.
  • Input fuse rated @ 3.5 amp/250V.

  • Output:

  • 12VDC or 24VDC selectable output.
  • 12VDC or 24VDC @ 2.5 amp supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

  • Battery Backup:

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Maximum charge current 0.7 amp.

  • Supervision:

  • AC fail supervision (form "C" contacts).
  • - Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).

  • Visual Indicators:

  • AC input and DC output LED indicators.

  • Electrical:

  • Operating temperature: 0 ° C to 49 ° C ambient.
  • 15.35 or 30.7 BTU/Hr.
  • System AC input VA requirement: 374VA.
  • Lifetime Warranty
