Altronix EBRIDGE1PCRMT ip/coax pss poe/poe+ rcv/trscr

EBRIDGE1PCRMT

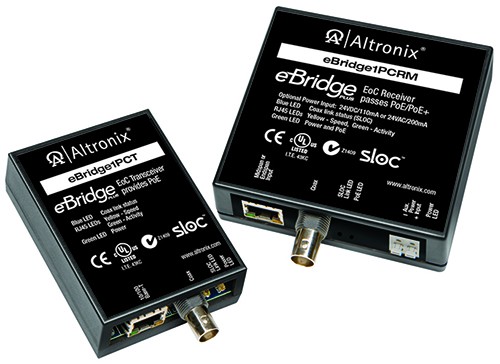

eBridge1PCRMT is a single port EoC Receiver and hardened Transceiver kit that transmits data and passes power over coax cable. eBridge1PCRM receiver is powered by a PoE midspan or endspan product, such as a NetWay8M and NetWay16M and sends its power over the coax to the eBridge1PCTX tranceiver under PoE protocol. This enables the eBridge1PCRM to be used in a managed manner, allowing for remote camera reset. The transceiver in turn delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A maximum range from headend to the edge device/camera is 700m, taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera.

•


• Input:

• Powered by midspan or endspan.

• Local Aux. Input Power for eBridge1PCRM:

• 24VDC/110mA or 24VAC/200mA.

• Ethernet:

• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex, auto negotiation.
• PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge transceiver.
• Throughput is rated to pass 25mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.

• Coax:

• Distance: up to 457m for power delivery of coax.
• Connectivity: BNC, RG-59/U or similar.

• LED Indicators:

• eBridge1PCRM:
• Blue LED - Coax link connection.
• Green - PoE ON.
• Green - Power ON.
• eBridge1PCRM and eBridge1PCTX:
• Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
• eBridge1PCTX:
• Blue LED - Coax link connection.
• Green LED - PoE from eBridge1PCRM.

• Environmental:

• Operating Temperature:
• eBridge1PCRM: -4   ° F to 120.2   ° F (-20   ° C to +49   ° C).
• eBridge1PCTX: -4   ° F to 120.2   ° F (-20   ° C to +49   ° C).
• Storage Temperature:
• -22   ° to 158   ° F (-30   ° to +70   ° C).
• Relative humidity: 85%, +/- 5%, non-condensing.
• Operating Altitude: -1000 to 6,561.679 ft. (-304.8 to 2000m).

• Functions:

• Auto detection and protection of legacy non-PoE cameras/devices.
• Lifetime Warranty
