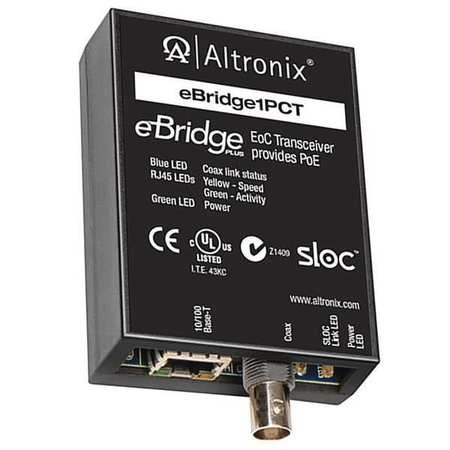

Altronix EBRIDGE1PCT ip/coax transceiver 2/poe

• Input:

• Powered by eBridge receiver.

• Power Consumption (under maximum load):

• Powered by eBridge receiver.

• Ethernet:

• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex, auto negotiation.
• PoE compliant to IEEE 802.3af (15W) Delivered to camera by eBridge1PCT. Power provided by eBridge receiver to eBridge1PCT by PoE protocol.
• Throughput is rated to pass 25mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.

• Coax:

• Distance: up to 457m for power delivery of coax.
• Connectivity: BNC, RG-59/U or similar.

• LED Indicators:

• Blue LED - Coax link connection.
• Green LED - PoE from eBridge1PCR.

• Environmental:

• Operating Temperature:
• -4 ° F to 140 ° F (-20 ° C to +60 ° C).
• Storage Temperature:
• -22 ° to 158 ° F (-30 ° to +70 ° C).
• Relative humidity: 85%, +/- 5%, non-condensing.
• Operating Altitude: - 1000 to 6,561.679 ft. (- 304.8 to 2000m).

• Electrical:

• BTU/Hr.:
• - 24VDC: 12.28 BTU/Hr.
• - 24VAC: 11.1 BTU/Hr.

• Functions:

• Auto detection and protection of legacy non-PoE cameras/devices.
• Lifetime Warranty
