EBRIDGE4PCRX

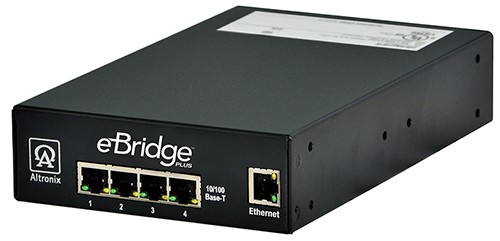

eBridge4PCRX is a CAT5 to Coax cable Managed Ethernet Midspan receiver. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. eBridge4PCRX receiver sends power over the coax to the eBridge1PCT 15.4W (PoE), eBridge1PCTX 30W (PoE+) or eBridge1ST 30W (PoE+) transmitter under PoE protocol. The eBridge1PCT/1PCTX/1ST, in turn, delivers that power to a PoE enabled cameras or devices. eBridge4PCRX will not deliver power to non-compliant devices. These plug and play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/PoE Class, pg. 3). A maximum range from head end to the PoE camera/device is 700m taking into consideration that 100m of structured cable may be deployed at each end. Altronix offers model VertiLine563 Rack Mount Power Supply/Charger which provides 56VDC output to power up to two (2) eBridge4PCRX receivers with up to eight (8) PoE+ cameras/devices.

• Input:

• 48VDC to 56VDC UL Listed power supply (attention to observe polarity).
• Note: Use 54V to 56V power supply to achieve full power per IEEE 802.3at standard.

• Power Consumption:

• 48VDC/2.6A, 56VDC/2.6A,
• eBridge1PCTX (30W): Powered by eBridge4PCRX.
• eBridge1PCT (15W): Powered by eBridge4PCRX.

• Ethernet:

• Connectivity: four (4) RJ45, auto-crossover.
• Wire type: 4-pair Cat-5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex, auto negotiation.
• Throughput is rated to pass 25mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.

• Coax:

• Distance: up to 457m.
• Connectivity: four (4) BNC, RG-59/U or similar.

• LED Indicators:

• Blue LED - Coax link connection.
• RJ45 LEDs:
• Yellow - IP Link status
• Green - 10/100Base-T/active.
• Green LED - Power.

• Environmental:

• Operating Temperature:
• 14   ° F to 122   ° F (-10   ° C to +50   ° C).
• Storage Temperature: -4   ° to 158   ° F (-20   ° to 70   ° C).
• Relative humidity: 85%, +/- 5%, non-condensing.
• Operating Altitude: - 1000 to 6,561.679 ft. (- 304.8 to 2000m).
• Lifetime Warranty
