Edwards Signaling 338-G5 chime signal ac 24v

Edwards Signaling

Sounders, 338 Series

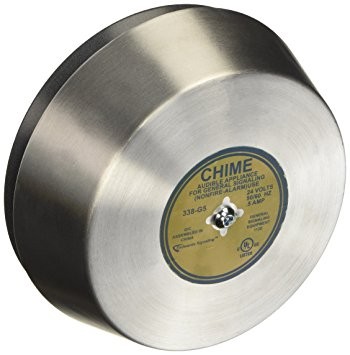

Item#  338-G5  - Chime, 24VAC, Surface Mount, Single Stroke, Satin Aluminum Finish

• AC or DC Models
• No Exposed Terminals
• Tamper-Proof Cover Screw
• Plastic Tipped Stainless Steel Striker
• Satin Aluminum Finish

The Edwards 338 & 339 are surface mount AC or DC single stroke chimes which can be pulsed up to 10 pulses/second. The chimes are high quality units with underdome construction intended for heavy"‘duty commercial and industrial use. The chimes require no lubrication.

The chimes come complete with an Adaptaplate® mounting plate. The Adaptaplate mounts on any plaster cover with mounting holes on 2 3/4" (70mm) centers, on any single gang opening, on any 3 1/4" (83mm), 3 1/2" (89mm), or 4" (102mm) octagon or square box. Also mounts directly on any wall surface. For flush mounting use Cat. No. 512"‘A grille and P"‘029522 back box.

For paging and scheduling applications requiring a pleasant note with middle range decibel rating. Ideal for offices and stores.

• UL Listed

Specifications
