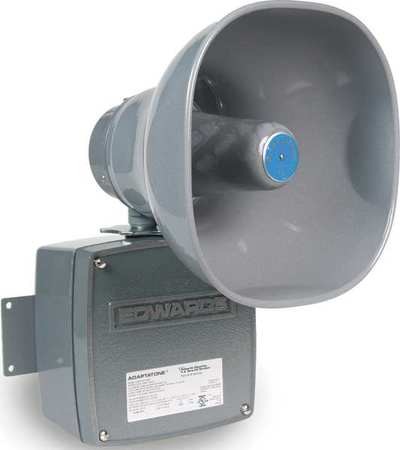

Edwards Signaling 5531M-24AQ millennium sgn 24vdc input

Edwards Signaling

Sounders, 5531M Series

Item#  5531M-24AQ  - Adaptatone 4 In 4 Out 24V Ac/Dc

• 110 dB at 10 Feet
• PLC Compatible
• 55 Tone Capability
• NEMA Type 3R
• UL; cUL; CE; TUV Approvals

The Edwards 5531M Series Adaptatone Millennium is a heavy duty industrial, tone"‘selectable, signaling device capable of producing volume"‘controlled, high"‘decibel tones. Four tones can be activated from field"‘wired, normally open contacts, or a 24 VDC or 120 VAC external voltage source such as the output of a PLC. Normally open contacts can be obtained from the Cat. No. 5538"‘4 and/or Cat. No. 5538"‘4R Adaptatone Signal Actuators.

The unit uses a microprocessor circuit to create 27 distinctive tones, by setting miniature dip switches within the unit. The programmed tones operate on a pyramid type priority system.

Designed for industrial applications. Typical applications include emergency warning systems, plant evacuation and security alarms, process monitoring, shift notification horns, and paging signals.

The 5531M is designed for either 1/2" (13mm) conduit or surface mounting.

Specifications
